Wall Phone VoIP

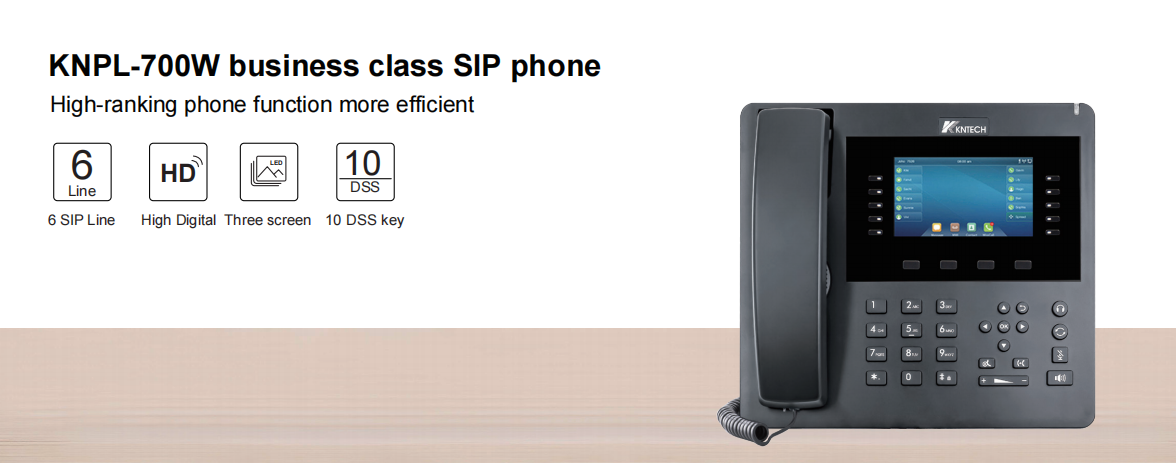

 VoIP Telephone KNPL-700W

6-Line Enterprise-class IP Phone

The KNPL -700W is a high -end business IP phone for users who need flexibility and advanced functions to easily handle busy and complex work needs at work.The KNPL-700W's upgraded color display has 10 DsS buttons for setting up BLF/seed dialing,mullticasting,and more.KNPL-700W is also equipped with high-definition voice,built-in Bluetooth,support WiFi link,support EHS,100M dual network port Poe,can be connected with IP camera /video access control.

The KNPL-700W with high-end features can greatly improve the efficiency of corporate communications.

HD audio,handset and speakerphone with support for wide-band audio.

6 line key swith up to 6 SIP accounts,8MPk extension keys with dual-color LED with 2 Left/Rightkeys.

Dual LCD screens with digital BLF keys.

Swappable face plates to allow for easy logo customization.

Dual switched auto-sensing 10/100 Mbps Megabytes Ethernet ports with integrated PoE.

4.3-inchs Colorful Screen

The surface design is very elegant ,with touch screen and high resolution screen.

With the intelligent user interface it could be breakthrough surface and experiment.

Angle 50°

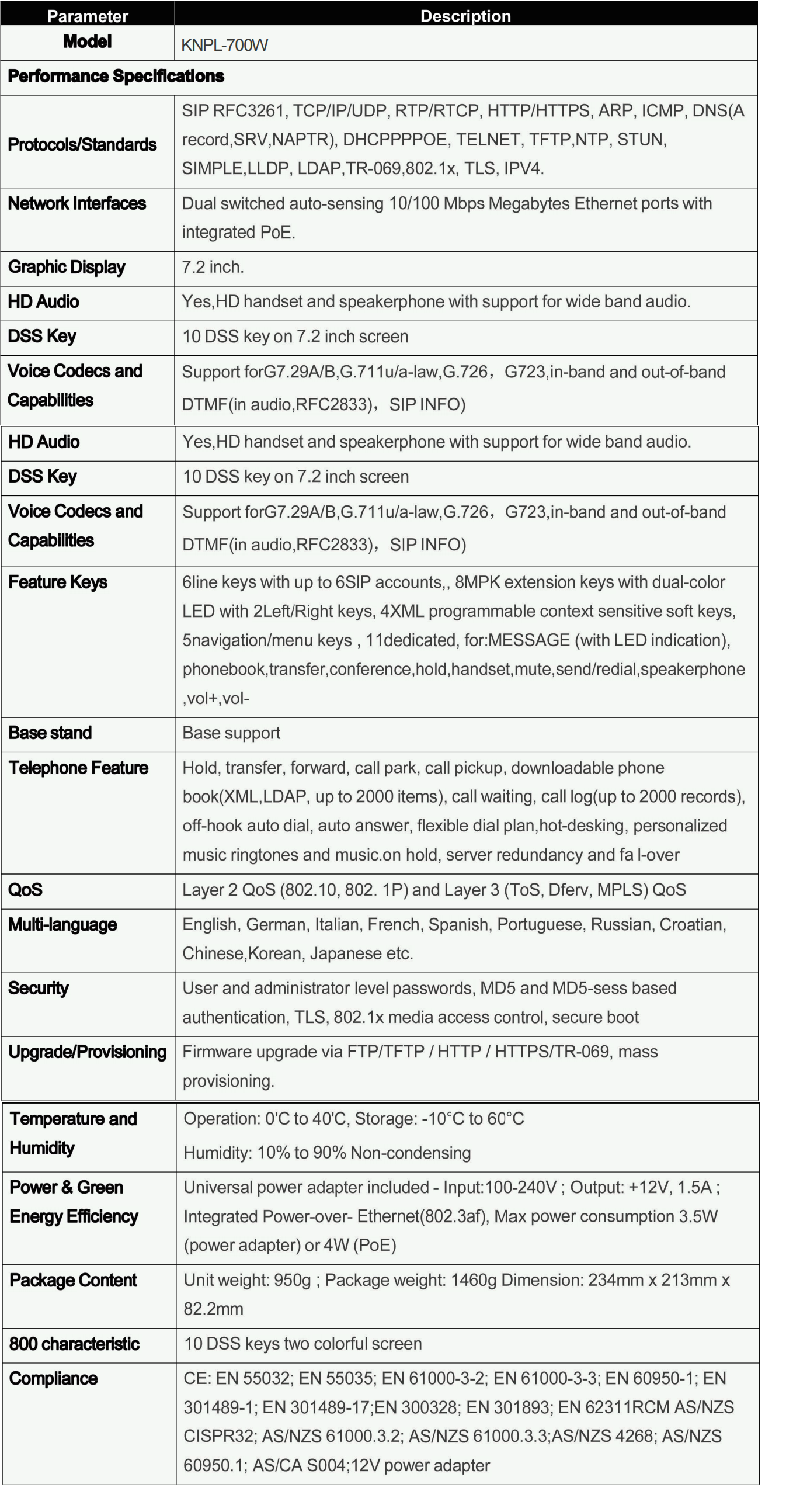

Function schedule (KNPL-700W)

*6 SIP Lines tripartite conference.

*HD sound quality.(handset and speaker)

*4 .3-inches colourful screen.

*Megabytes Double Network Port,POE is optional function.

*Inner Bluetooth function

*Support EHS earphone

*Support mainstream IP PBX/soft switch/IMS Platform3CX,

Asterisk,Broadsoft,Elastix,Avaya.

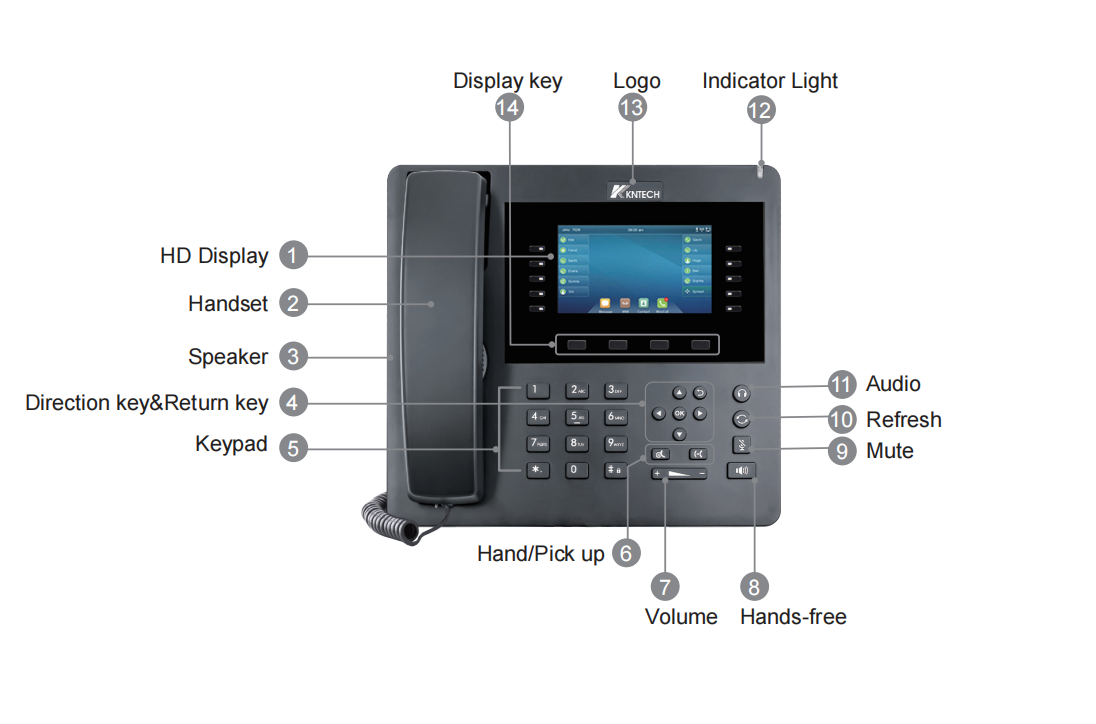

Key Function

1.HD Display:HD display.Clear images and support multi-window multi-person video conferencing.

2.Handset:Magnetic handle ,hang up and the phone hangs up.

3.Speaker:Speaker,power up to 8w.

4.Direction key and return key:functional button

5.Keypad:available for dialing and text input

6.Hand/Pick up.

7.Volume:used for volume adjustment.

8.Hands-free.

9.Mute:Main menu

10.Refresh:Used for data refresh.

11.Audio.

12.Indicator light.

13.KNTECH Logo.

14.KNTECH:HONGKONG KOON TECHNOLOGY LTD logo ,using laser engraving technology,engraved on the phone panel,not easy to fade and destroy.

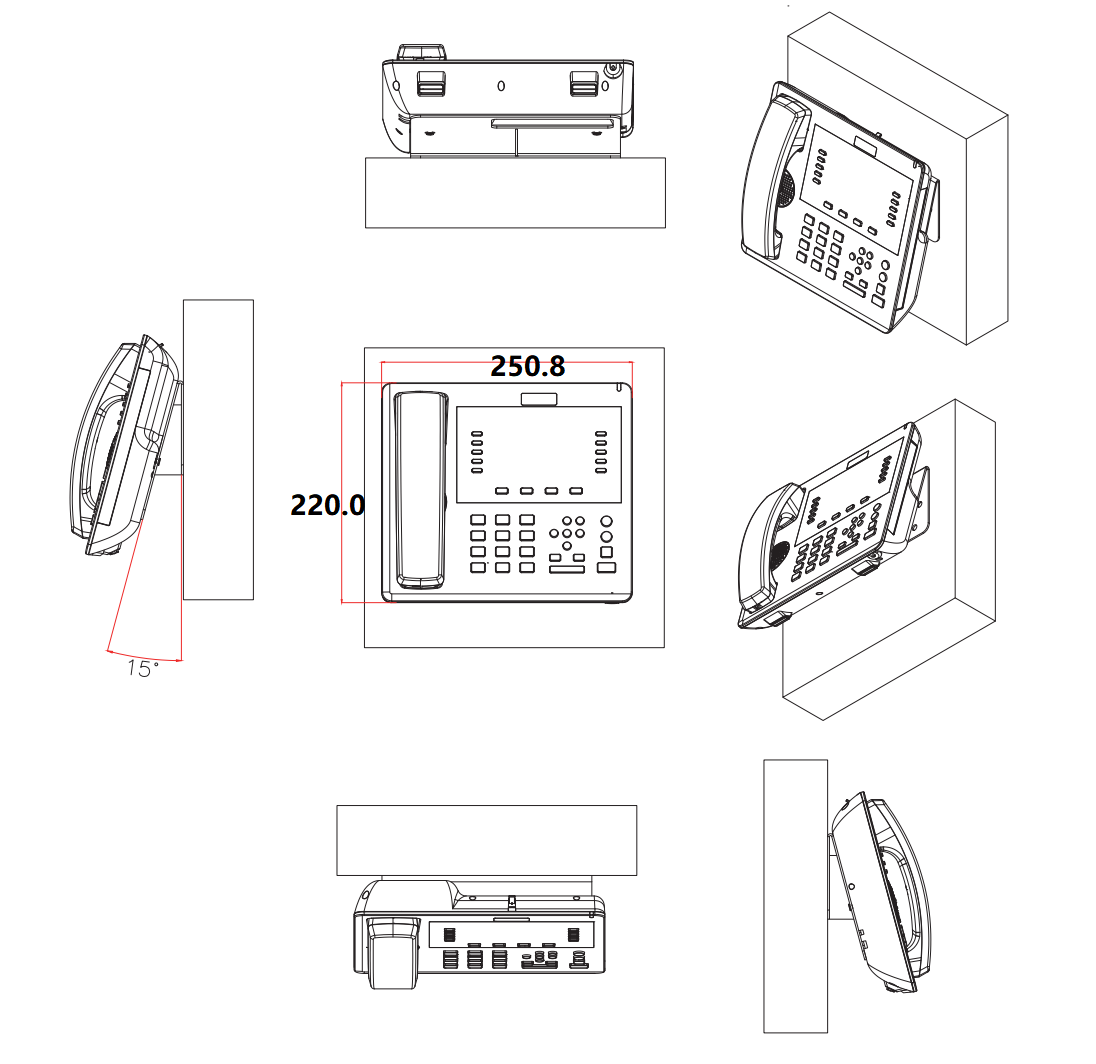

Telephone Dimension
